4-600424 STAGE 2 MINI ANL FUSE HOLDER 4×50/8x20mm2

Product beschrijving

• EAN: 6430042129515
•  4-600424
•  +/- fuseholder / distribution block
•  4x50 / 4x20mm2
•  Fuses not included
•  Splashproof

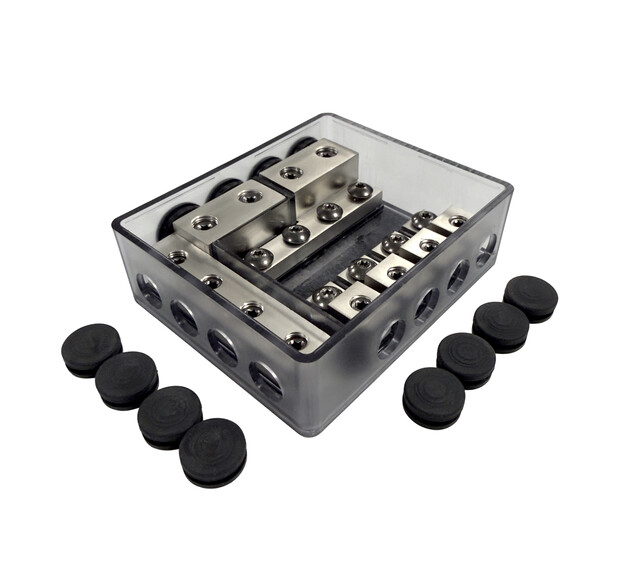

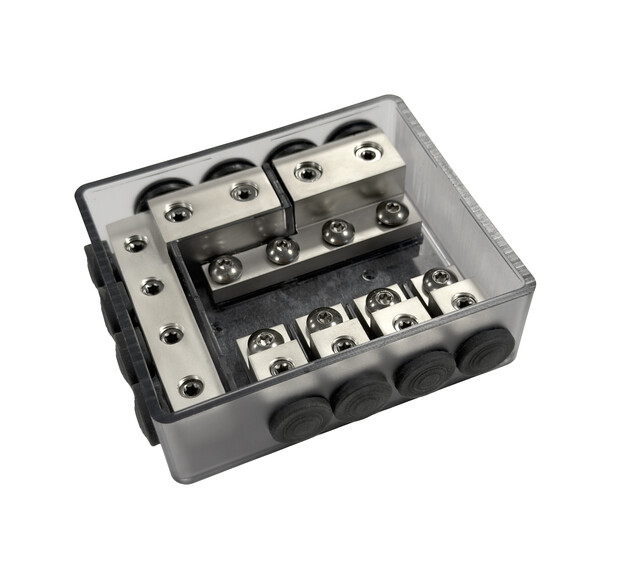

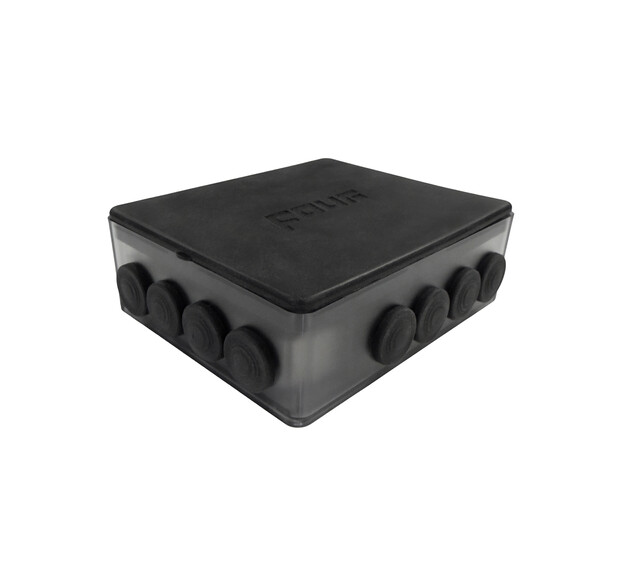

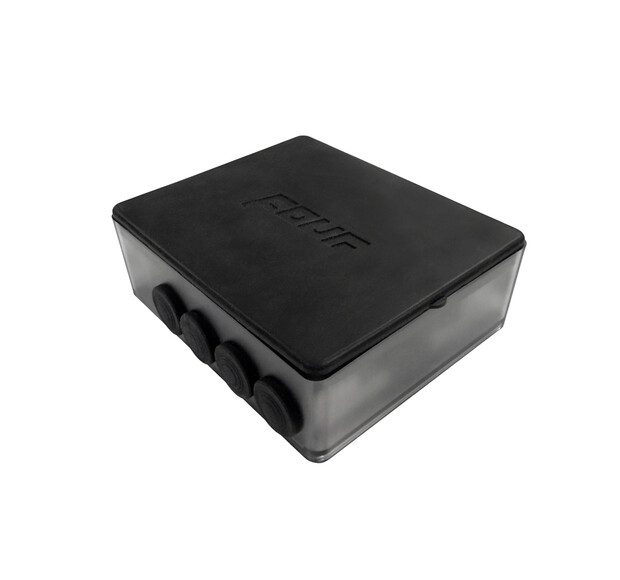

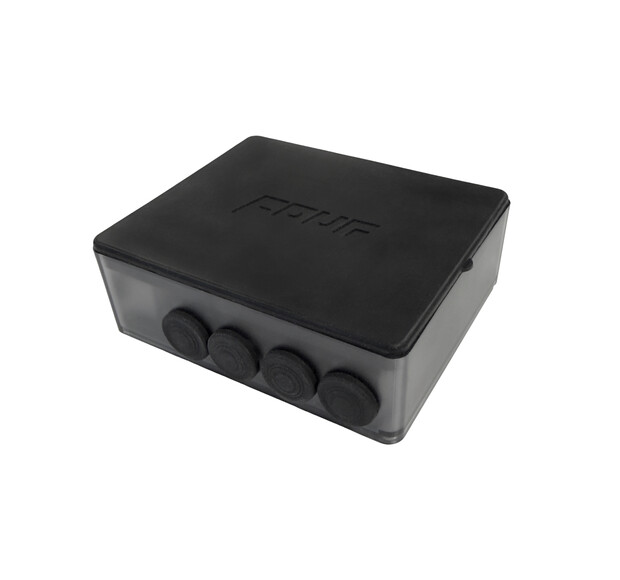

• Size: 110 x 90 x 36mmHigh-quality splash-proof mini-ANL fuse holder. Inside, there are 4 slots for mini ANL fuses. This product combines both a power distribution block and a ground distribution block in one.

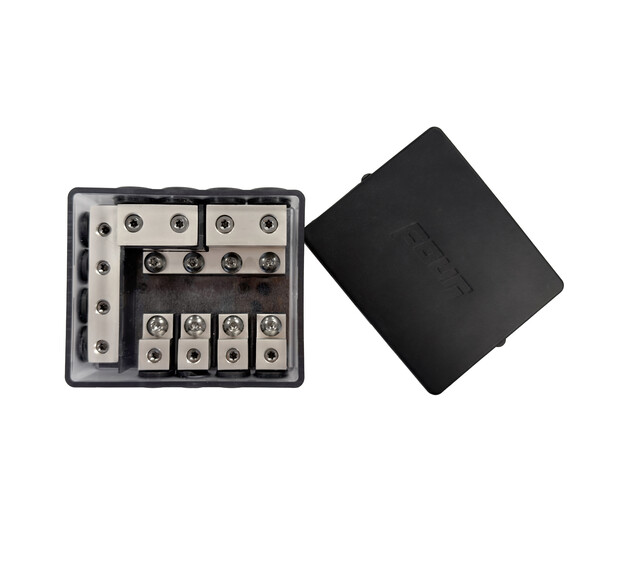

  This fuse box has an opening cover made of flexible rubber, making fuse changes effortless and quick. The frame is made of weather-resistant plastic, and you can attach it by screwing it into place using the holes in the base.

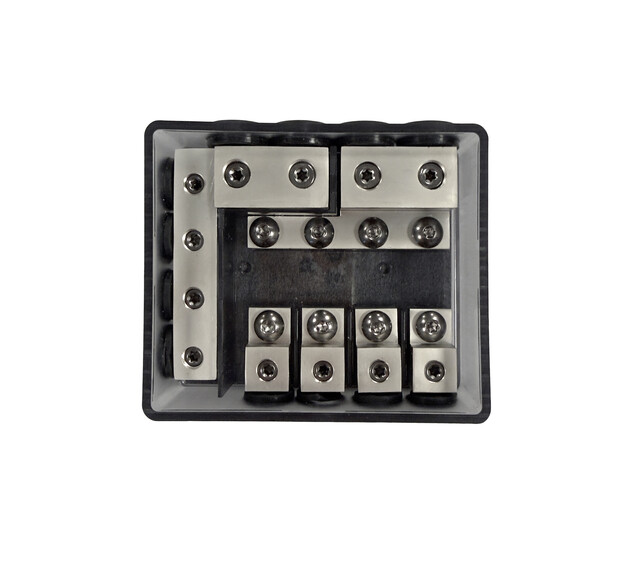

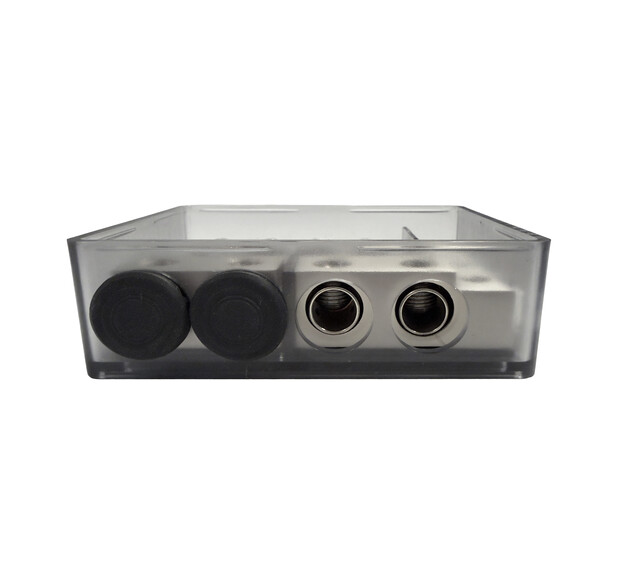

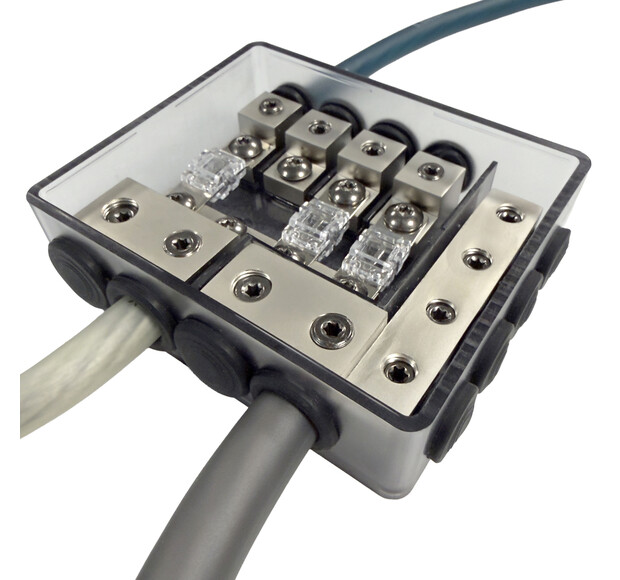

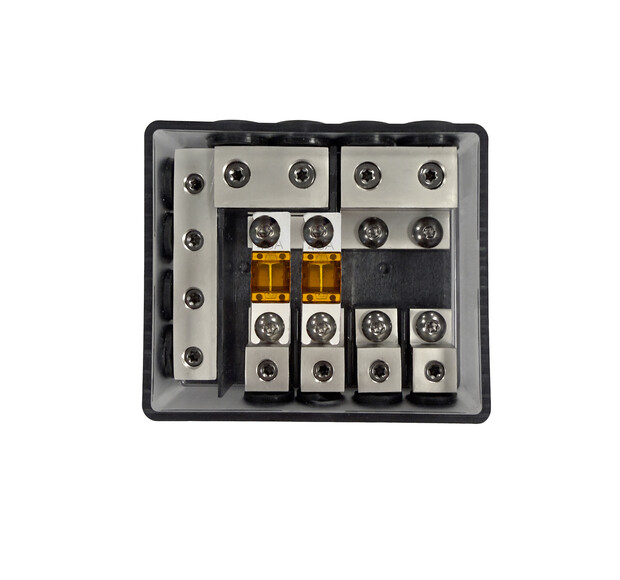

  Two 50 mm² inputs to the fuse box pass thru fuses and are distributed, if necessary, into four 20 mm² outputs (these connectors are intended for + currents).

  The other two 50 mm² inputs are designed for grounding (the ground block does not have fuse locations). The terminal block has 4 pieces with 20 mm2 outputs.

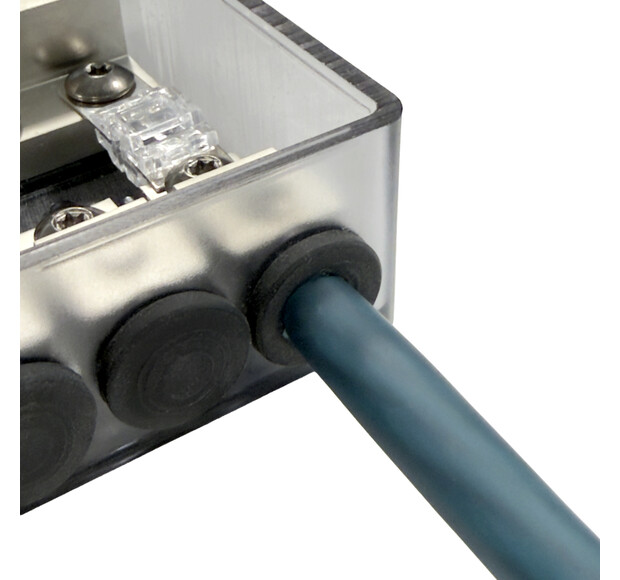

  The cable input / outputs have rubber O-rings that can be modified to fit the cable thickness. Inside the blocks have a wire end sleeves that allow you to secure the cables very firmly in place.

  Cable sizes suitable for terminals:

  4 x 50 mm² / 35 mm²
  8 x 20 mm²
