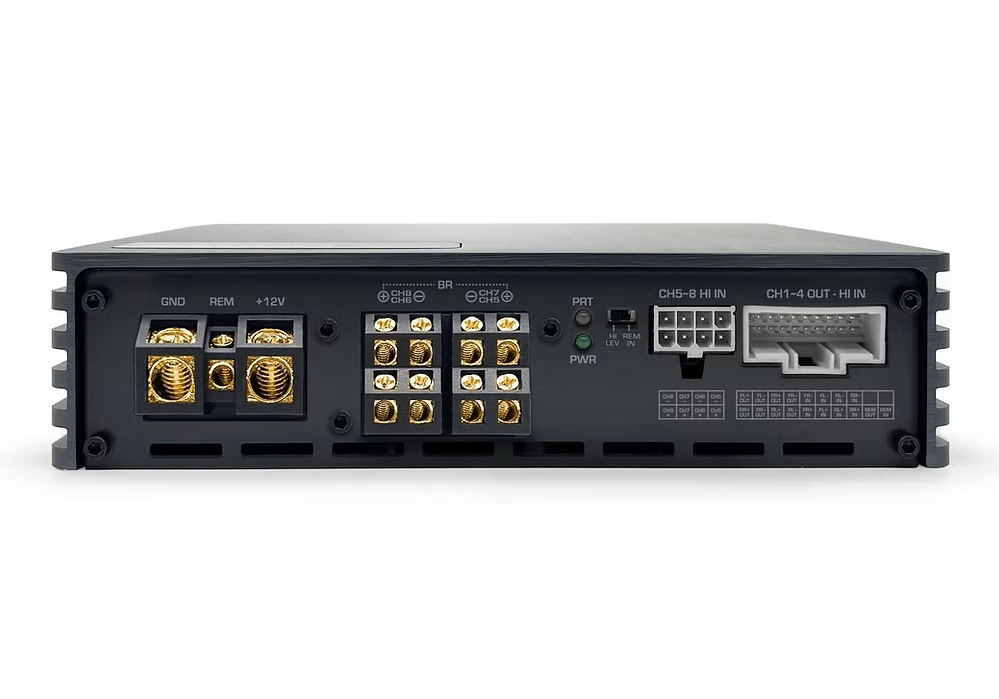

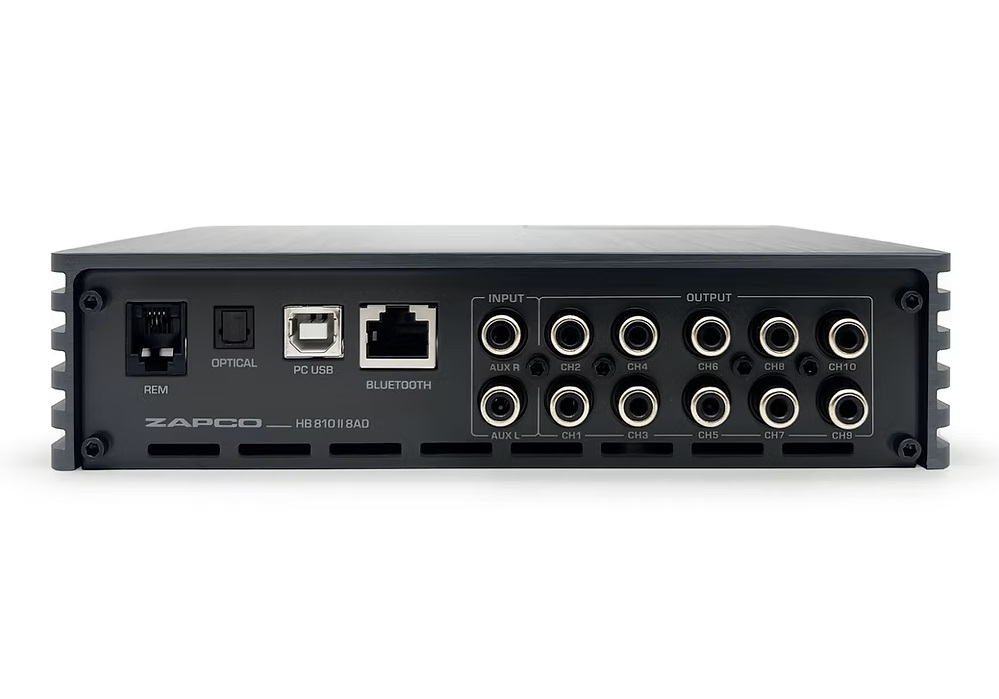

HB 810 II 8AD Integrated 10-Ch. DSP / 4-Ch. (AB) + 4-Ch. (D) Amplifier

Productbeschrijving

Features and Functions
The HB 810 II 8AD is a 10-Ch. DSP with 31-bands eq. and all the control features you need. The integrated 8-Ch. Class-AB + D Amp can deliver up to 4 x 35W (AB) + 4 x 100W (D) at 4Ω and 4 x 50W (AB) + 4 x 150W (D) at 2Ω. With the BT module and with the totally new customized APP you can now control and setup your system with your smartphone, and with the added Music Player you can now also navigate and listen to your favorite song. With the opt. Remote you can control the main and sub volume, select Presets and input Source, and switch to previous or next song with the Music Player, from your dashboard.

Technical Specifications
- 10-Ch. DSP (31-bands EQ)
- 8-Ch. High Level Inputs
- 2-Ch. RCA Inputs + 10-Ch. RCA Outputs
- Plug & Play ready
- BT 5.1 streaming
- OTG Input
- Music Player (MP2.3.4, WMA, APE, FLAC, AAC, M4A, WAV, AIF, AIFC)
- PC and Mobile DSP tools
- Mobile Music Player App
- Class AB Amplifier Power: 4 x 100 Watt (Max)
- Class D Amplifier Power: 4 x 150 Watt (2 Ohm)
- Class D Amplifier Power (Bridged): 2 x 300 Watt (4 Ohm)
- Dim. in mm: 190 (L) x 166 (W) x 45.5 (H)
User's Manual

PC and Mobile Control Programs

PC Program (Windows)

Android Mobile APP

iOS Mobile APP

optie : HB DSP II-R   Remote Control is los te bestellen (niet bij inbegrepen)
