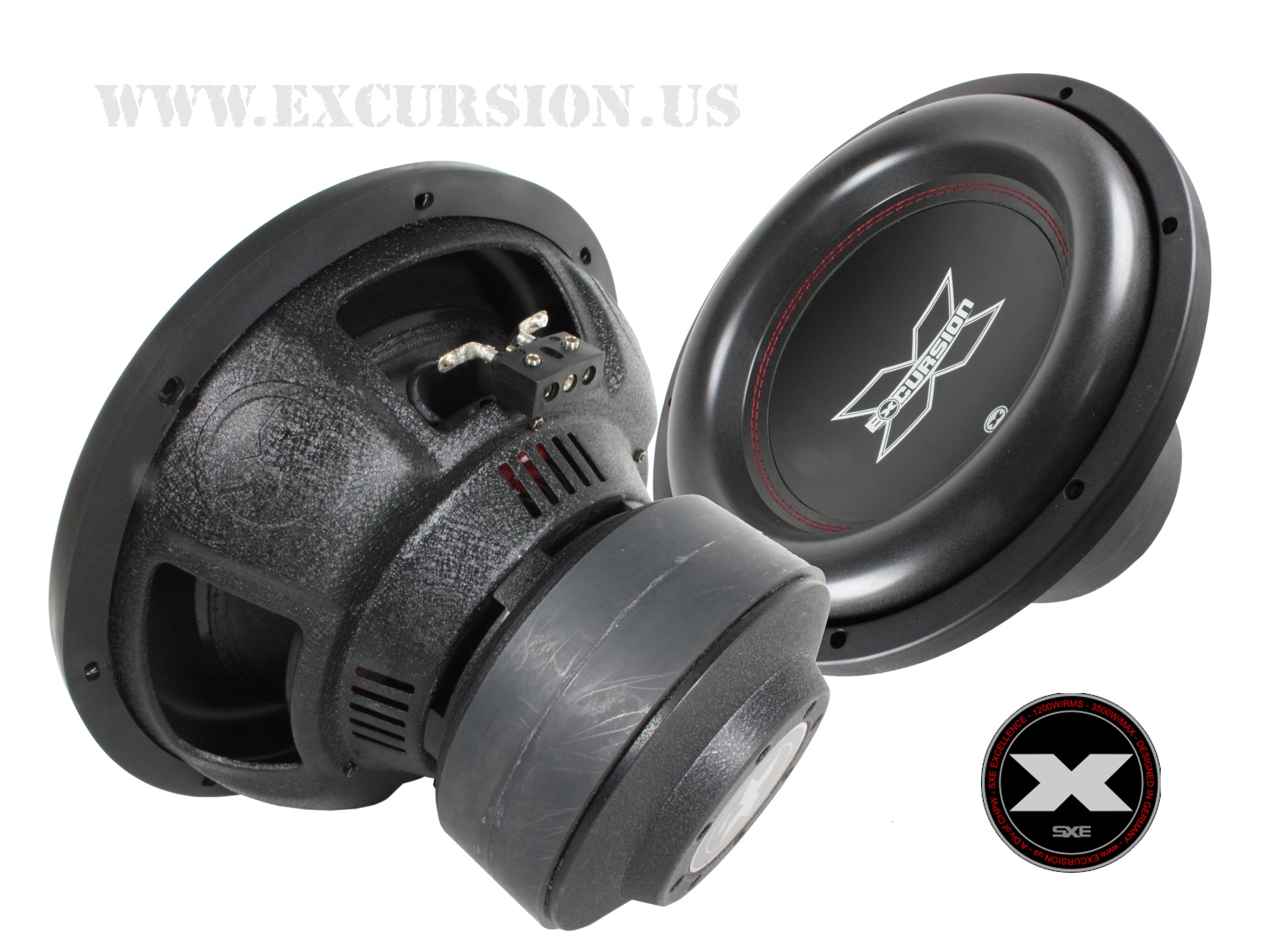

12" / 30cm - 2x2Ohm - 3"CCAW 4layer USA
1200 RMS / 3500 W - 350oz Y30 Dual Stack
MD=200mm ID=285mm OD=318mm 12.0kg
Dual Composite red linear Spider + Rings
Dual 8GA Terminals - 12GA Dual Tinseal
Red stiched HDR Surrounds, inverse DC
VC Roll Range Height 60 mm
XMAX linear 24 / 48 mm
DC Widerstand 2x 1.8Ohm
BL @ Series 13.79 Serial
Suspension Compliance Cms 0.051
Mechanical Q Factor Qms 6.41
Electrical Q Factor Qes 0.75
Total Q Factor Qts 0.66
Moving Mass Mms 262.7 g
Eq.Cas Air Load( liters) VAS Liter 16.24
Resonant Frequency Fs Hz 43
Effective Piston Area SD 471.4
